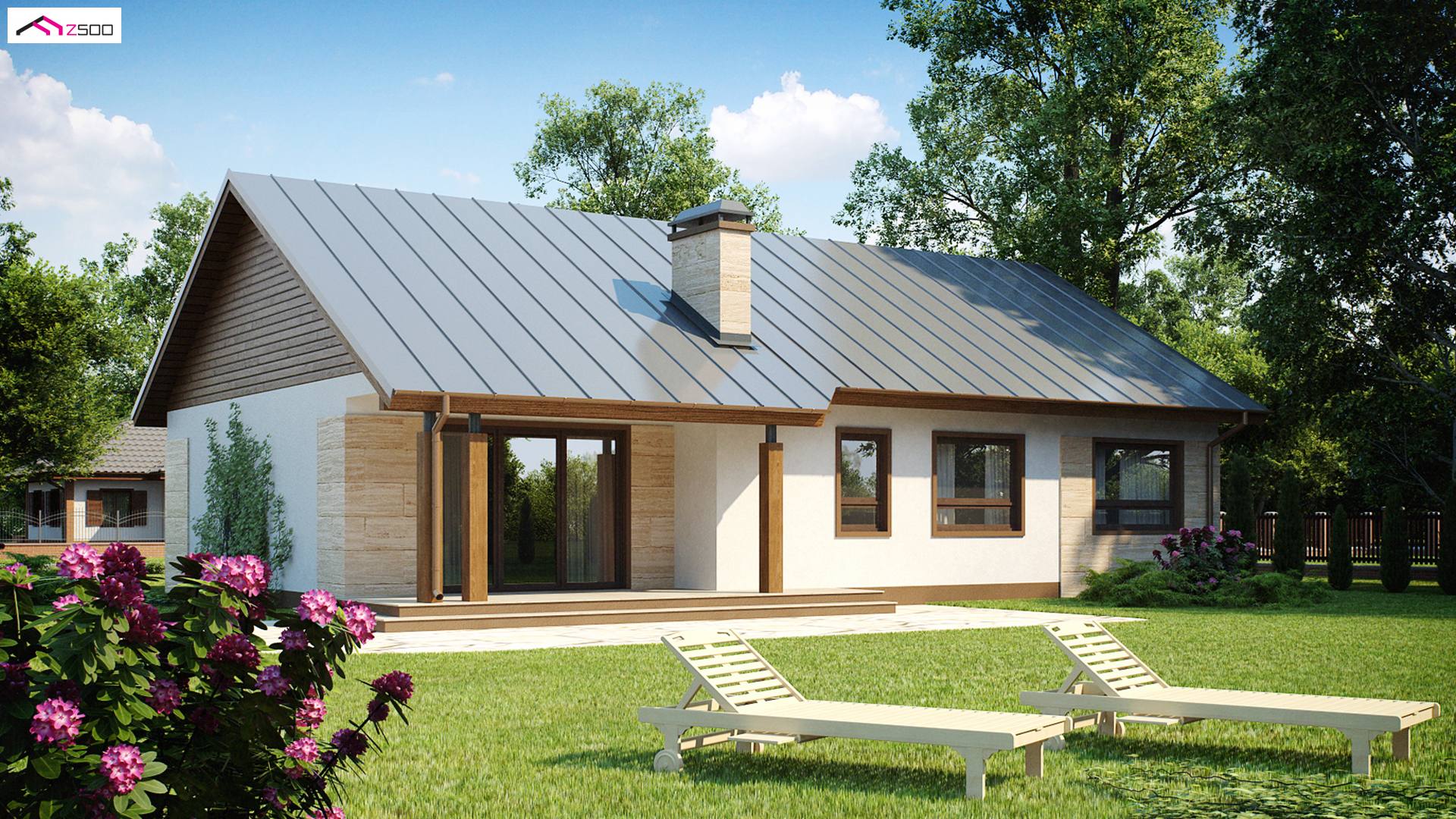

Home project Z98 D

Z98 D mirror image

wooden
concept
project's availability 3 work days
$2 990
wooden
concept
project's availability 3 work days
mirror image
$2 990
Home project Z98 D

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.

Ground 1224,5 / 1329,1 ft²

Sień
42,1 ft²
Hol+schody
108,7 ft²
WC
24,5 ft²
Kuchnia
105,8 ft²
Salon+jadalnia
281,8 ft²
Pom. gosp.
103,9 ft²
Pokój
136,0 ft²
Pokój
172,6 ft²
Pokój
168,1 ft²
Łazienka
65,9 ft²
Spiżarka
37,7 ft²
Hol
60,7 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.

Garret optional

Attic optional - means that the project possible adapt stories above the ceiling for the living area, utility or attic, depending on the final destination space directly under the roof. Adapting stories requires each application to design the necessary modifications, ie. Design, architectural and installation to be carried out at the stage of Adaptation Project to the plot by authorized persons.

mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
70,93 ft
length
58,79 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
51,25 ft

Area and dimensions

Usable / net
1224,5 / 1329,1 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1555,7 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Cubic
21 261,9 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
24,11 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
35°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
2 538,45 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
0,79 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
70,93 x 58,79 ft


Technology and construction

Walls
timber frame
Ceiling (ground floor)
wooden
Roof
plate, Metal tile, tile
technology
wooden

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
home project Z98 D – interior arrangement, Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.
home project Z98 D – interior arrangement, Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.
home project Z98 D – interior arrangement, Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.
home project Z98 D – interior arrangement, Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.
home project Z98 D – interior arrangement, Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.
home project Z98 D – interior arrangement, Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.
home project Z98 D – interior arrangement, Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.
home project Z98 D – interior arrangement, Parterowy dom tani w budowie z dużym P.G oraz z opcją zagospodarowania poddasza.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
