Home project Z71 D - w technologii szkieletowej

Z71 D mirror image

w technologii szkieletowej
mirror image
Home project Z71 D - w technologii szkieletowej

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - w technologii szkieletowej

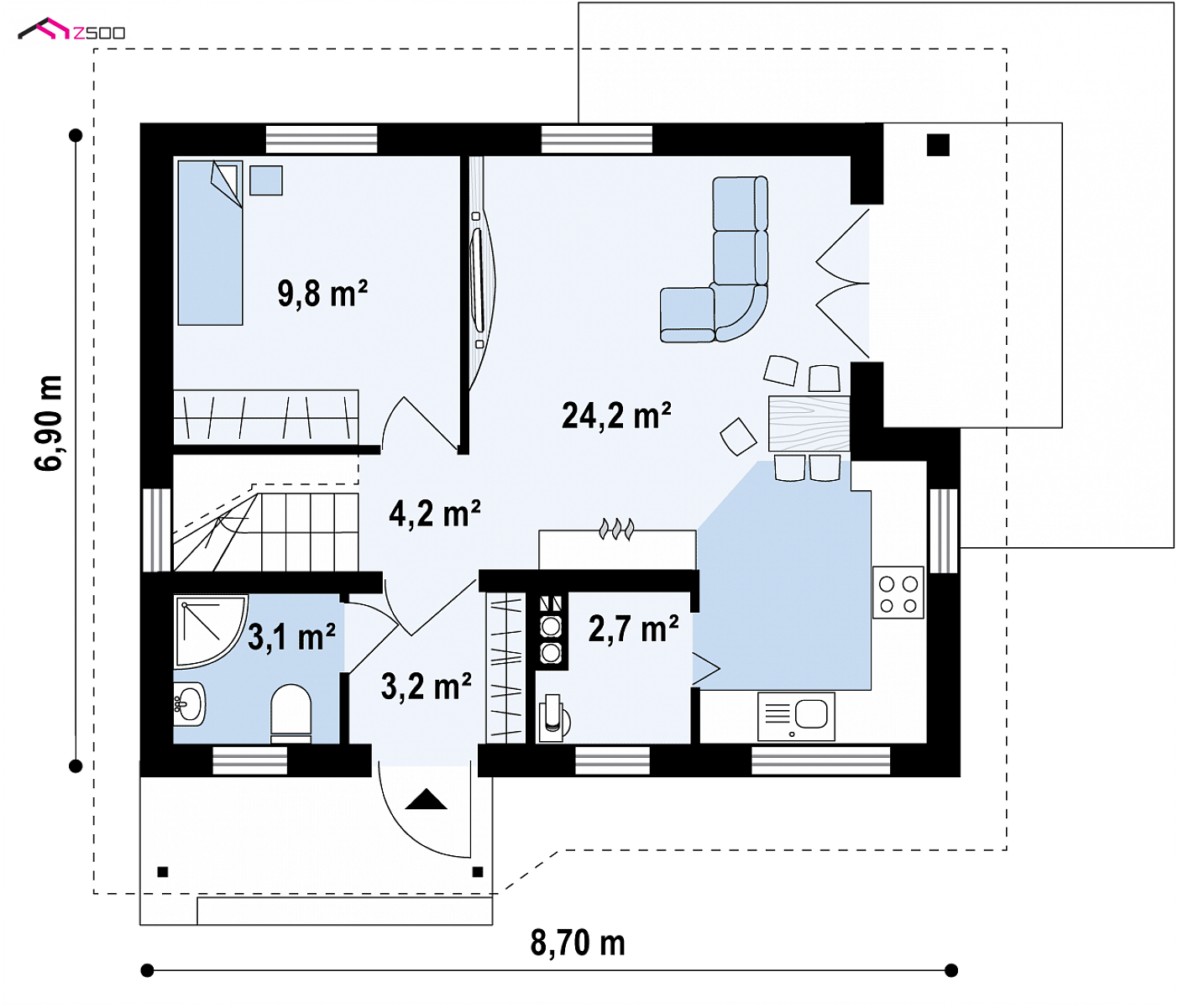

Ground 507,1 ft²

34,2 ft²
45,2 ft²
260,8 ft²
Pom. gosp.
28,6 ft²
105,2 ft²
33,1 ft²
Click or touch on the image on the left to start the measure.
Home project  - w technologii szkieletowej

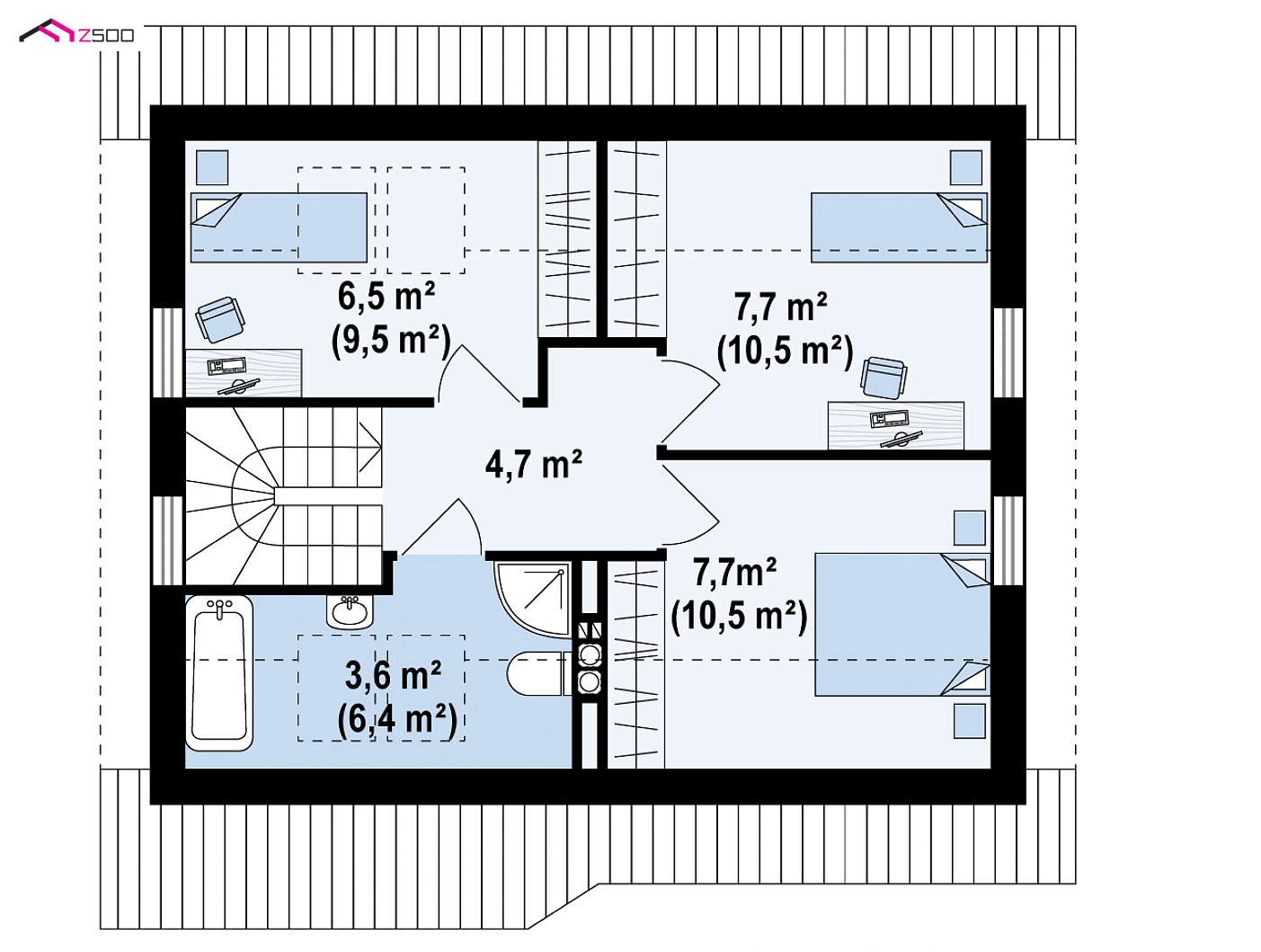

Garret 325,7 / 447,5 ft²

50,3 ft²
70,2 ft²
83,1 ft²
83,2 ft²
39,0 ft²
Click or touch on the image on the left to start the measure.
Home project  - w technologii szkieletowej

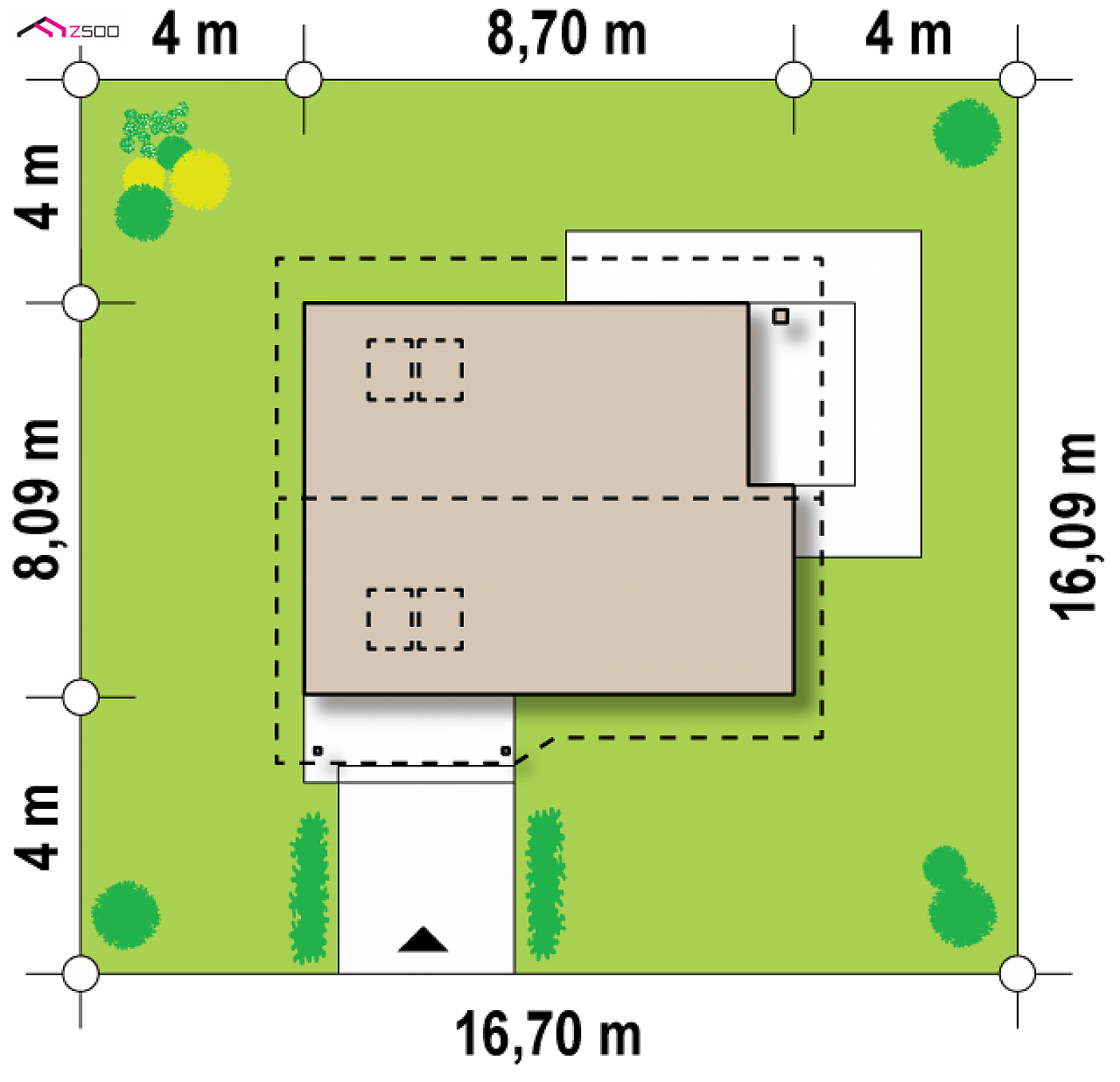

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

54,79 ft
48,88 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
28,54 ft

Area and dimensions

Usable / net
832,8 / 954,5 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
646,2 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
7 592,65 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
24,11 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 208,03 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
3,84 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
54,79 x 48,88 ft

Technology and construction

timber frame
Ceiling (ground floor)
tile, Metal tile

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
94,9 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
80,9 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych

Wersja podstawowa w technologii drewnianej - szkieletowej.

Projekt z 71 DL jest domem dość oryginalnym w swym wyglądzie, a zarazem zwartym w swojej formie. Dzięki prostej bryle z dwuspadowym dachem, umożliwia to szybką i niedrogą realizację.

Na parterze znajduje się kuchnia, jadalnia oraz salon. Wszystkie te pomieszczenia zostały integralnie połączone. Dodatkowo część pomieszczenia gospodarczego można wykorzystać jako spiżarka. W drugiej części domu znajduje się pokój który może służyć jako gabinet lub jako pokój gościnny.

Na piętro prowadzi centralnie zlokalizowana klatka schodowa. Znajdują się tam trzy pokoje, każdy posiada miejsce na szafę - garderobę i dość przestronna łazienka.

Z71 DL to idealny dom dla ludzi ceniących prostą formę, a zarazem praktyczność. Pełna gama pomieszczeń, sprawia, że znajdzie się tam miejsce dla każdego.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
