Z24
106 ft²
Variants: 4
Comments: 510
Projects: 36
$1 360
IF YOU HAVE ANY QUESTIONS CALL US
Usable / net area
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
105,9
/ 109,5
ft²
Living area
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
138,7 ft²
Cubic
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
329,29 ft³
The height of the house
The height of the house - height from ground level to the ridge or attic.
6,68 ft
The angle of inclination of the roof
The angle of inclination of the roof
- the angle of the roof to the ground.
25° / 35°
Roof area
Roof area - total roof area with the exception of roof windows.
209,66 ft²
Minimal plot
19,66
x
20,06 ft
Ceiling (ground floor)
trusses
Roofing
tile
technology
brick
Roof construction
prefabricated trusses
Project's construction is based on:
• III Strefa wiatrowa dla H=300m n.p.m. obciążenia wiatrem (300 N/m2)
• III Strefa śniegowa dla H=300m n.p.m. obciążenia śniegiem (1200 N/m2)
• Głębokość przemarzania gruntu hz= 1,2m.
• Przyjęto proste warunki gruntowe - bez wody!
• Budynek zaliczono do I-ej kategorii geotechnicznej.
• Obliczeniowy graniczny opór podłoża gruntowego założono: mxQf=150kPa
• III Strefa śniegowa dla H=300m n.p.m. obciążenia śniegiem (1200 N/m2)
• Głębokość przemarzania gruntu hz= 1,2m.
• Przyjęto proste warunki gruntowe - bez wody!
• Budynek zaliczono do I-ej kategorii geotechnicznej.
• Obliczeniowy graniczny opór podłoża gruntowego założono: mxQf=150kPa
heating system
heating system - Type of heating provided for the project
gas
Hot water installation
gas, solars
Ventilation type
mechaniczna
Primary energy (Ep)
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
65,83 kWh/ft²/year
Final energy (Ek)
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
67,48 kWh/ft²/year
Ground 105,9 / 109,5 ft²
Drawmirror image
Click or touch on the image on the left to start the measure.
37,0 ft²
Hall
3,4 ft²
Hol
10,1 ft²
112,6 ft²
Pantry
4,3 ft²
320,4 ft²
Kitchen
9,3 ft²
104,6 ft²
Living room + dining room
29,2 ft²
46,1 ft²
Utility room
3,6 ft²
39,2 ft²
130,0 ft²
WC
2,2 ft²
175,5 ft²
Room
12,9 ft²
68,0 ft²
Bathroom
6,2 ft²
141,1 ft²
Room
16,1 ft²
23,0 ft²
Room
12,2 ft²
Lot

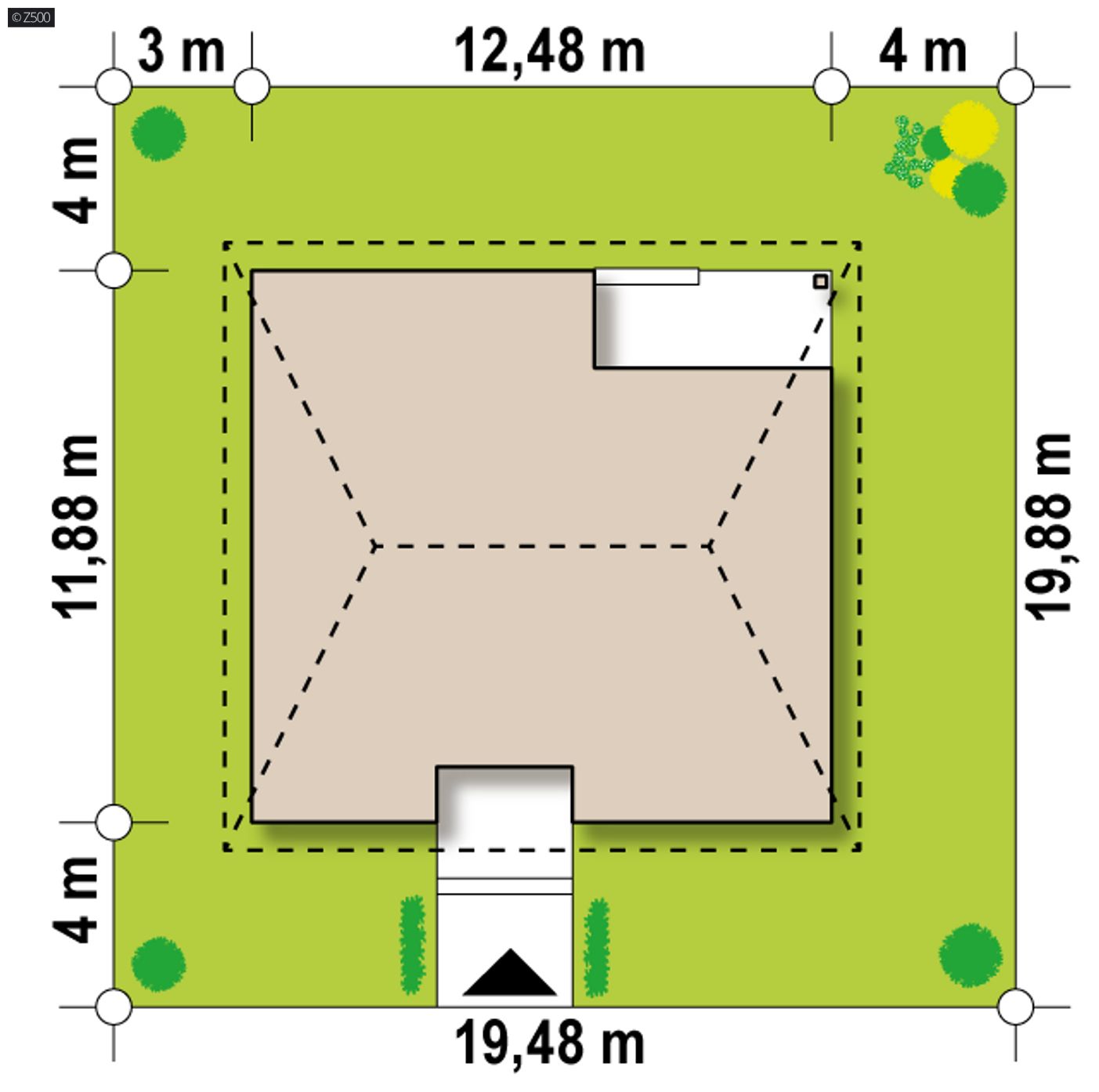

Minimal plot
Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
width
19,66 ft
length
20,06 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
12,66 ft
IF YOU HAVE ANY QUESTIONS CALL US
(718) 810-5358
Mon - Fri: 8:00 - 19:00
Additional informations about the project and order
Produkty marki Z500™ objęte są prawami autorskimi zgodnie z ustawą o prawie autorskim i prawach pokrewnych (tj. Dz.U. 2017 poz. 880) zastrzega prawa autorskie i zakazuje wykorzystywania tego produktu do celów handlowych, reklamy oraz wprowadzania w nim zmian ponad wymienione w projekcie bez wiedzy i zgody podmiotu reprezentującego. Nabycie oryginalnego projektu obejmuje prawo zastosowania go do budowy tylko jednego domu wyłącznie na terytorium Rzeczypospolite Polskiej. Reprezentantem marki Z500™ w Polsce jest podmiot Z500 Sp.z o.o.
Z24
106 ft²
brick
$1 360
view color variants
view color variants
view color variants
view color variants
view 3D interactive model
adaptation and changes to the project
Do you want to build a house based on this project but you need to make some changes?
Use our Adaptation Studio services:
- free evaluation of changes and adaptations
- over 100 proven architects throughout Poland
- the best price offer for changes and adaptations
